DPP Thermal Mobile Receipt Printer

Item has been added to your basket.

$935.00

Out of Stock

Calculate Delivery

Estimated Delivery: FREE

The DPP 2" and 4" thermal receipt printers are MFi-certified and provide both ruggedness and reliability in a small package. They can be used in dynamic working conditions and their abundant built-in features facilitate use in varied applications.

The 2" and 4" variations are powered by a long life battery and include Bluetooth connectivity. The 4" model is a receipt and label printer with a convenient tear bar.



SKU: TMRP

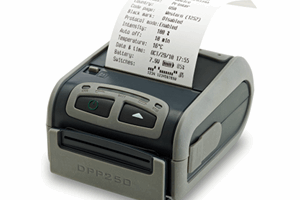

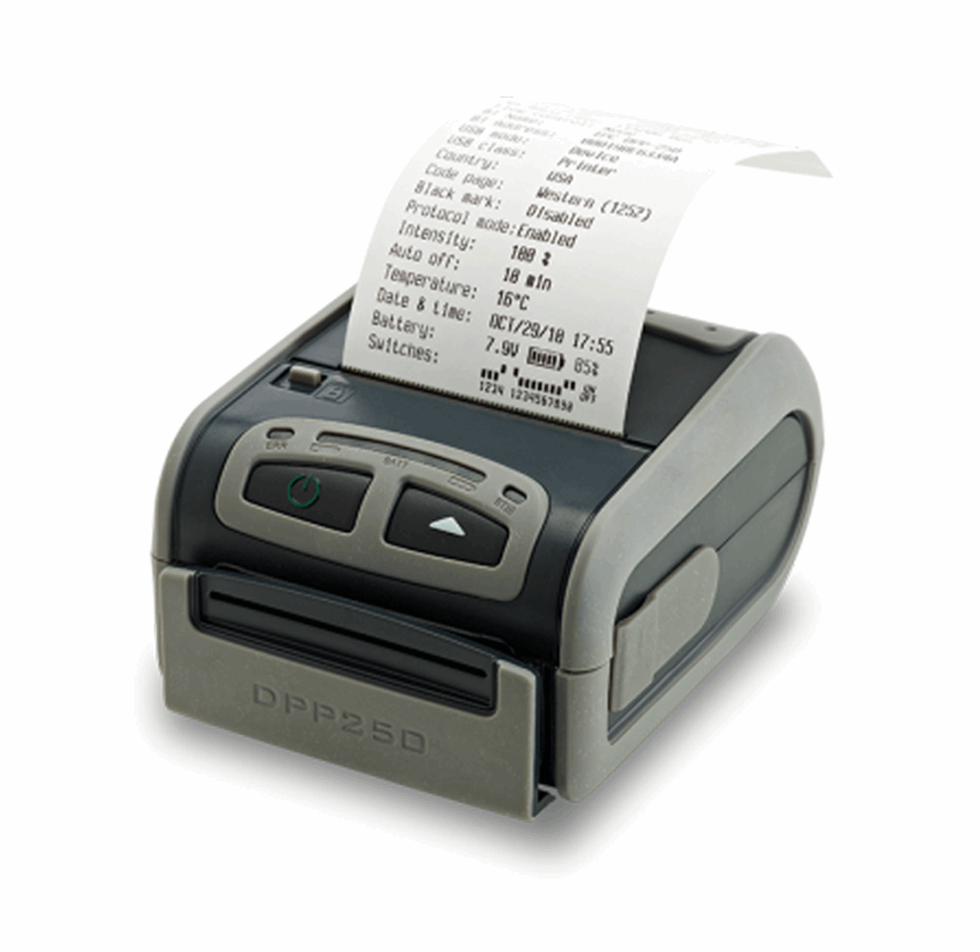

2" Thermal Mobile Printer

(DPP - 250), battery operated.
Mag stripe reader and Bluetooth® options available.
Compact form factor.
Long-life battery (approx. 2.5 paper rolls).

Printing Specifications

Printing Method Line thermal dot printing
Printing Speed 60mms/s (480 dots/sec) at 8.5 V
Print Width 48mm / 384 dots per line
Resolution 203dpi (8x9 dots/mm)
Dot Pitch Horizontal – 0.125 mm (8 dots/mm)
Vertical – 0.125 mm (8 dots/mm)
Resident Fonts Font A: 12 x 24 dots (32 char. per line)
Font B: 9 x 16 dots (42 char. per line)
Loadable Fonts Font C: 12 x 24 dots (32 char. per line)
Font D: 9 x 16 dots (42 char. per line)
Logo Registration 1 black and white size: 384 x 248 dots
Input Buffer 128 KB (131072 bytes)
Resident Barcodes 1D - EAN13, EAN8, UPC-A, UPC-E, Codebar,
Code39, Code128
2D – PDF417, QR Code
Communications RS232 C – max. 115200 bps.
USB v 1.1, compatible with 2.0
Bluetooth
Emulation ESC/POS Continuous paper mode
Thermal Paper 58mm +0/-1mm X 45mm diameter, thickness
60 μm
Reliability Printing head: 50km (printing rate 25% max)

Electrical

Power Supply Rechargeable Li-ion battery (7.4 V / 1100 mAh)
Battery capacity: per charge (~20,000 lines)
AC adapter – DC 9 V, 1 A
AC 100 – 240 V, 1.3 A, 50/60 Hz
Magnetic Stripe Reader 3 track unencrypted MSR head, ISO7811
(optional)

Mechanical

Dimensions 6mm (W) x 113mm (D) x 57mm (H)
Weight 295 grams (without paper)
350 grams (with paper)

Environment

Operating Environment Operating temperature
0°C to +45°C 32°F to 113°F
Operating humidity 35 to 85% RH
Storage temperature
-20°C to +60°C -4°F to 140°F
Storage humidity 10 to 90% RH

Compatibility

iOS Support iOS6 and higher
Android Support Android OS 2.1 and higher

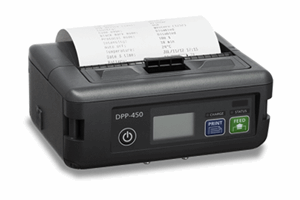

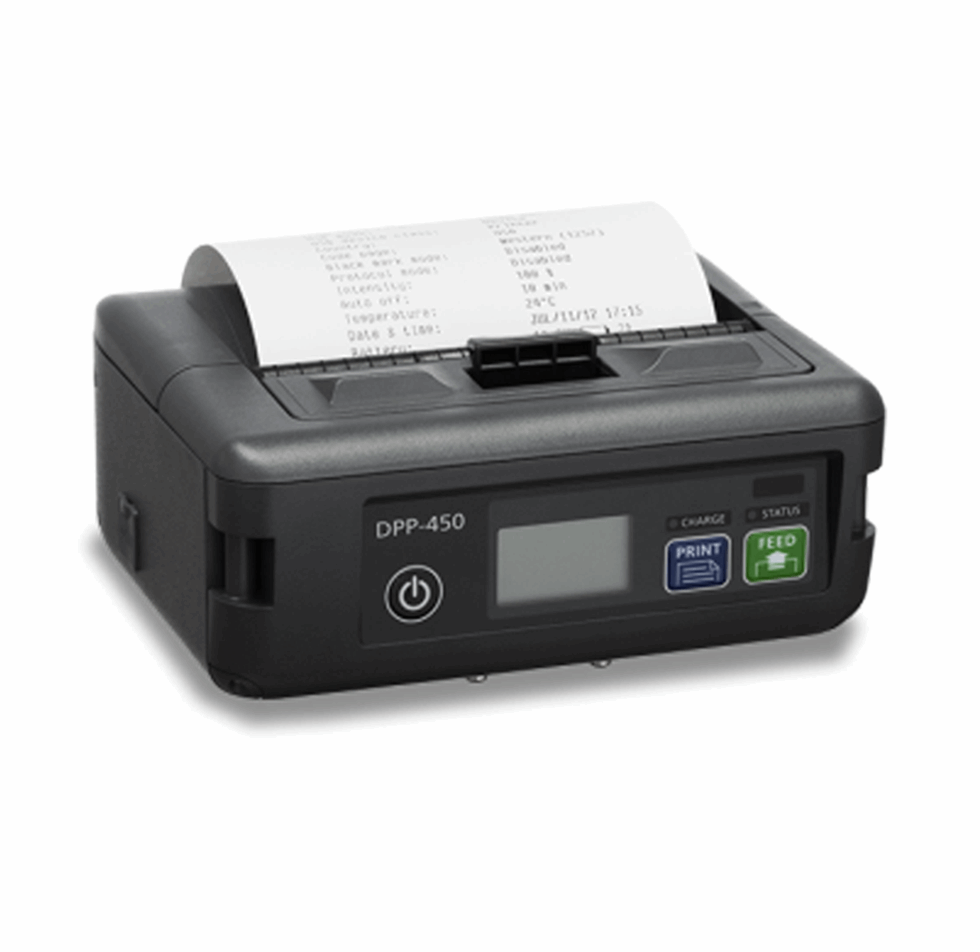

4” thermal mobile printer

(DPP - 450), battery operated.
Bluetooth® option available.
Prints paper and labels, includes label gap sensor and label peeler.
LCD display. Compact form factor, integrated belt clip.

Printing Specifications

Printing Method Line thermal dot printing
Printing Speed 150mms/s (1200 dots/sec)
Print Width 104mm / 832 dots per line
Resolution 203dpi (8x8 dots/mm)
Dot Pitch Horizontal – 0.125 mm (8 dots/mm)
Vertical – 0.125 mm (8 dots/mm)
Resident Fonts Font A: 12 x 24 dots (48 char. per line)
Font B: 9 x 16 dots (64 char. per line)
Loadable Fonts Font C: 12 x 24 dots (48 char. per line)
Font D: 9 x 16 dots (64 char. per line)
Logo Registration 1 black and white size: 832 x 248 dots
Input Buffer 128 KB (131072 bytes)
Resident Barcodes 1D - EAN13, EAN8, UPC-A, UPC-E, Codebar, Code39, Code128
2D – PDF417, QR Code
Communications RS232 C – max. 115200 bps.
USB v 1.1, compatible with 2.0
Bluetooth
Emulation ESC/POS/LABEL (Continuous paper mode, Black Mark mode)
Thermal Paper 115 mm / Ø 45 mm, thickness 60 μm
Label Paper Roll: 115 mm / Ø 45 mm
Reliability Printing head: 50km (printing rate 25% max)

Electrical

Power Supply Rechargeable Li-ion battery (7.4 V / 2000 mAh)
Battery capacity: per charge (~30,000 lines)
AC adapter – DC 24V, 5A
AC 100 – 240 V, 50/60 Hz

Mechanical

Dimensions 136mm (W) x 123mm (D) x 51mm (H)
Weight 785 grams (without paper)
990 grams (with paper)

Environment

Operating Environment Operating temperature
0°C to +45°C 32°F to 113°F
Operating humidity 35 to 85% RH
Storage temperature
-20°C to +60°C -4°F to 140°F
Storage humidity 10 to 90% RH

Compatibility

iOS Support iOS6 and higher
Android Support Android OS 2.1 and higher
